2003 Corolla Radio Fuse Diagram

How to fix car stereo toyota 2003 to 2010 car stereo not working.

2003 corolla radio fuse diagram. Identifying and legend fuse box toyota corolla 2001 2007. This is a verse thing ever i saw in toyota this fuse pannel is very hard to work even the fuse diagram. Toyota corolla fuse boxes locations years 2002 to. How to replace radio fuse toyota camry years 2000 to 2017 duration.

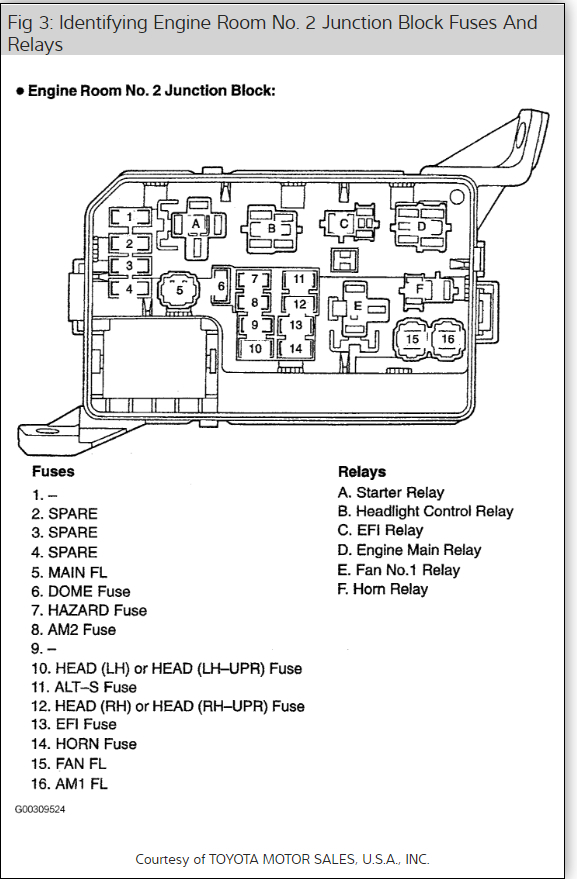

250 of your 2005 owners manual shows the location of the fuse boxes. Toyota corolla 2002 2004 fuse box diagram. Engine compartment toyota corolla mk9 fuse box engine compartment instrument panel toyota corolla mk9 fuse box instrument panel fuses type a. In my 2000 toyota corolla ce fuse for the radio is located at the back side of the radio you need to pull out the radio and you will see the fuse on.

Step 1 2003 2008 toyota corolla finding the fuse box. Toyota corolla fuse boxes locations years 2002 to 2015. Locate fuse and relay. The video above shows how to replace blown fuses in the interior fuse box of your 2007 toyota corolla in addition to the fuse panel diagram location.

There is one under your hood on the drivers side and the other is under the dash just to the left of steering wheel. The fuse box diagram for a 2003 toyota corolla ce is located on the rear of the box cover. 2005 toyota corolla radio fuse pg. Electrical components such as your map light radio heated seats high beams power windows all have fuses and if they suddenly stop working chances are you have a fuse that has blown out.

It can also be found within the service manual. 2003 toyota corolla ac compressor not coming on fuse good ac charged no pwer at compressor it is located in the engine compartment fuse junction box it is on the drivers side then cover to the box will show you witch one it is the relay will be white in color. You will find the fuse box right under the panel at the left side not for uk models. It is a black covered square box so you will need to take it with some appropriate tool.
