Led on digital box comes on when ign. Ran ok for two days then dead. Vibration mounts wiring and a pc cable are supplied.

excel price quotation template blank template squarespace declaration of trust template uk free dryer fuse box blank std test result form printable cut out owl cake template cvp income statement formula contract for deed template

Msd Ignition 6425 Ignitions Ignitionproducts Eu

Msd Digital 6al Ignition Control 6425 Tutorial Overview

Msd 6al 2 Ignition Control

The led will turn on after the wire has been grounded for five seconds and will turn off at the 10 second mark.

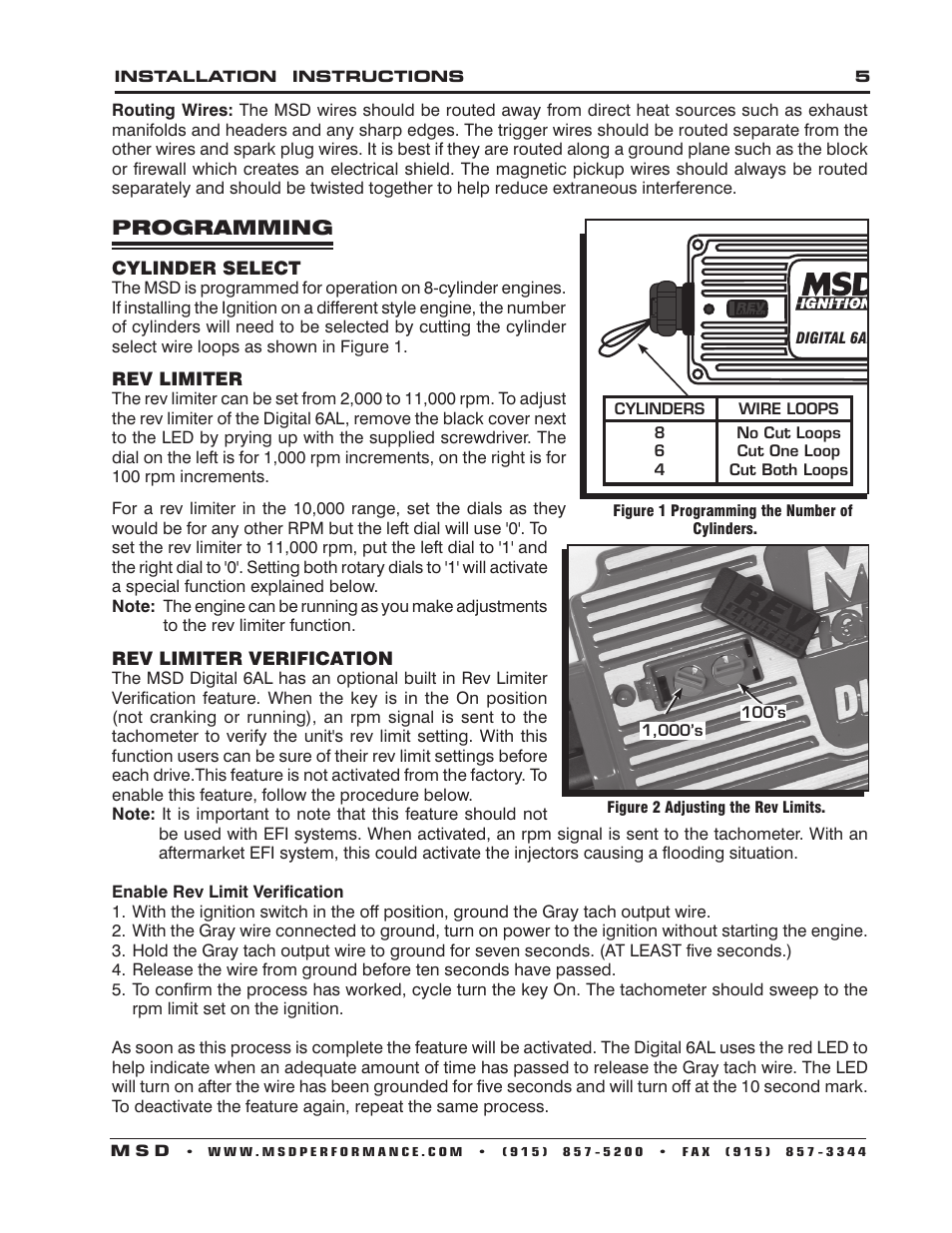

Msd 6al led. The wiring of the digital 6al is routed out one end of the unit through a sealed and locking connector. Installation instructions led indicator a red led is located on the top of the msd 6al. The rev limiter of the 6al is located right on top of the housing for easy access to the two rotary dials to set the limit in 100 rpm increments. The digital 6al uses the red led to help indicate when an adequate amount of time has passed to release the gray tach wire.

The programmable 6al 2 shares the same advanced features of the new 6al 2 with 535 primary volts and spark energy reaching 135 mj. Led indicator a red led is located on the top of the msd 6al. Must use msd pro data software to program. The ignition will deliver full voltage with a supply of 9 18 volts and will operate with a supply voltage as low as seven volts.

Page 3 7 detonation could occur and cause engine damage. Took system out and put in a different system then went back to original engine and put the msd parts back in. For extended high rpm operation the blaster hvc pn 8252 or hvc ii pn 8253 are recommended. The line of msd blaster coils are great for street and mild racing.

This eases installation and keeps your wiring looking neat and clean. It is used to monitor the current status of the 6al ignition. To add more heat protection to your plug wires msd offers pro heat guard pn 3411. It is used to monitor the current status of the 6al ignition.

Turned to on then blinks intermittently not like it should when running properly with the light pulsing in sink with the spark. The msd can be used with 16 volt batteries and can withstand a momentary 24 volts in case of jump starts. Key power on engine one long flash 6al box is rev limiter verification. Key power on engine off key power on engine off key power on engine cranking key power on engine cranking one long flash one long flash 5 short flashes continuous flashing no flashing 6al box is functioning normal 6al box is.

An msd 6al 2 ignition control will operate on any negative ground 12 volt electrical system with a distributor. The digital 6a and 6al ignition can be used with most stock coils and aftermarket coils designed to replace the stock coils.
