In practice only one communication channel with accompanying handshaking is present. Rs232 monitoring hardware establishes a connection between data terminal equipment dte and data communication equipment dce. Max 232 pin diagram and circuit diagram.

dove deodorant printable coupons 2019 donor prospect worksheet blank mouth diagram dodge 3500 trailer wiring diagram cover sheet template for paper bill of sale wa template church donation receipt template create printable birthday card

Rs232 Pin Description Microcontroller Interfacing And

Rs232 Serial Cable Pinout Information

Rs232 Interface Rs232 Pin Diagram Db25 Db9

9 pin d sub female connector at the computers serial cable.

Rs 232 rs232 pin diagram. In order to link these devices an rs232 d9 pinout is essential as this pinout will allow you to connect two devices successfully. The interface is mainly used for one to one serial communication for example computer to dial up modem connection. Interface converter cable for interconnection of usb and rs232 serial interfaces. The only problem is the large variety of rs232 null modem cables available.

Some of the simpler systems just send the data without any hard wired handshaking and as a result the serial data cables required for this are very simple. In this pin out provisions were made for a secondary communication channel. Rs232 null modem cables the easiest way to connect two pcs is using an rs232 null modem cable. The rs 232 stands for recommended slandered and 232 is a number x indicates the latest version like rs 232c rs232s.

D sub 9 connector pinout. For that reason the smaller 9 pin version is more commonly used today. What is an rs232 9 pin pinout. An rs232 pinout 9 pin cable features nine pins.

The interface is two types db9 and db25 pin connectors. 4 pin usb a usb b mini usb jack connector at the computers usb cable. Image processing projects for engineering students. The original pin layout for rs232 was developed for a 25 pins d sub connector.

For simple connections a three line rs232 cable connecting the signal ground and receive and transmit lines is sufficient. Pin diagram and internal schematic. The diagram below indicates how you would go about connecting two pcs together without handshaking. Pinout and diagram of de9 connector db9 connector commonly used for serial ports rs 232.

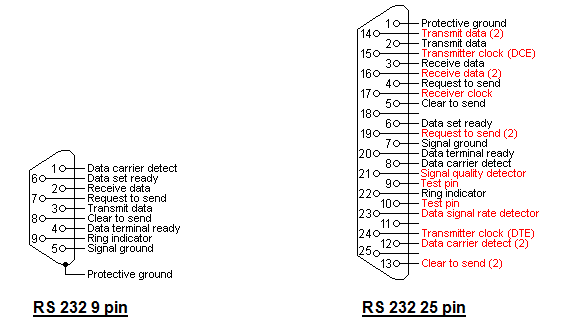

Figure 1 depicts rs232 pin diagrams for db9 connector. Features of max232 ic. Figure 2 depicts rs232 pin diagrams for db25 connector. Serial data cable diagrams and pin connections different data systems utilise different levels of handshaking when using rs232.

As shown in the figure it carries both data and control signal. Connecting two pcs together using rs232 without handshaking when handshaking is required generally rts of one device connects to cts of the other and vice versa and also dsr of one device connects to dtr of the other device and vice versa. Pin connections connectors when setting up a data link using rs232 it is necessary to ensure the right connections are made otherwise the system will not operate.
